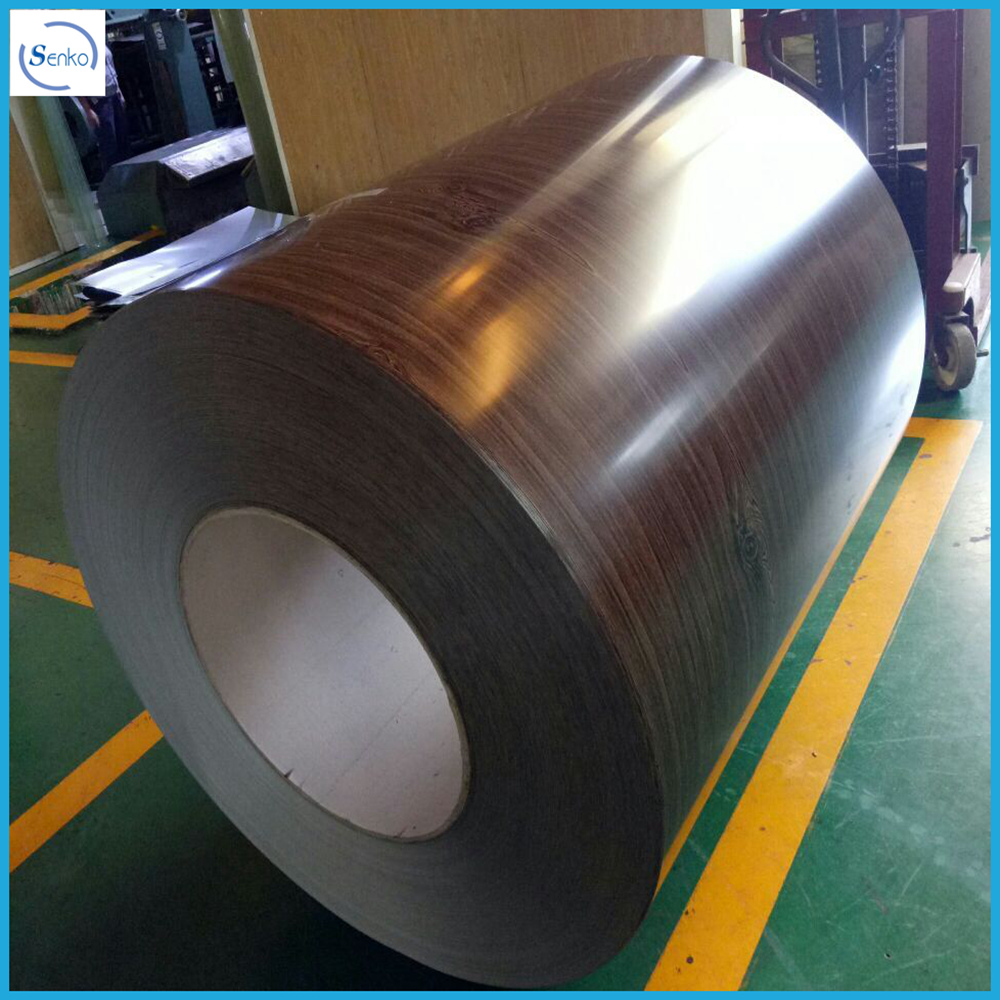

Home Appliances Coated Steel


It is special PCM steel, not like common PPGI, it has different patterns for option. Like brick pattern, stone pattern, wood pattern, camouflage pattern, etc. All patterns can be custom made.


Base Metal Thickness 0.2mm to 1.2mm
Coil Width 800mm to 1500mm
Coil I.D. 508mm & 610mm
Coil Weight Max. 8 MT
Metallic Coating Z60~Z275 & AZ60~AZ180
Organic Coating Thickness 20~40 Micro
Yeally Capacity 80000 MT


Layer Type Features
Protection Film Polyethylene Protecting the paintwork layer from scratching and contamination
Clear Varnish PE/SMP/HDP/PVDF The transparent layer protects printing layer & enhances surface appearance
Print PVDF Ink, PE Providing various patterns, 3 color painting
Top Coating PE/SMP/HDP/PVDF
Top coating provides color,pleasing appearance & a barrier flim to enhance long-term durabiliy
Primer Polyester Primer coating prevent undercutting of paint & enhance corrosion resistance
Chemical Treatment Cr-free Passivation Pre-treatment layer applied for added good adhesion & to enhance corrosion resistance
Base Steel GI,GL,EG,CR,AL Galvanized steel,Aluzinc steel,Electro-galvanized steel,Cold rolled steel,Aluminum sheet
Chemical Treatment Cr-free Passivation Good adhesion & corrosion resistance
Backing Coating Epoxy Resin Improving corrosion resistance & adhesion to the substrate
